Tire Shredder Machine

Description Of Tyre Shredder Machine

  • Tyre shredder machine can broken big tyre such as car tyre into small pieces. This is an important pre-treatment machine for a high working efficiency,it’s widely used for waste tyre pyrolysis plant and other tyre recycling machine.

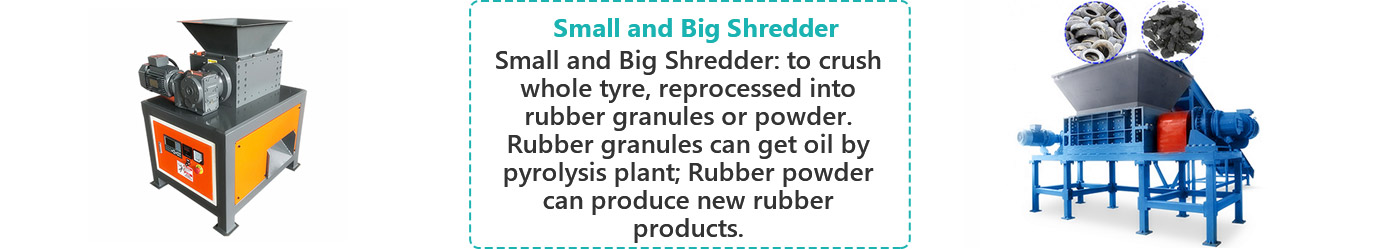

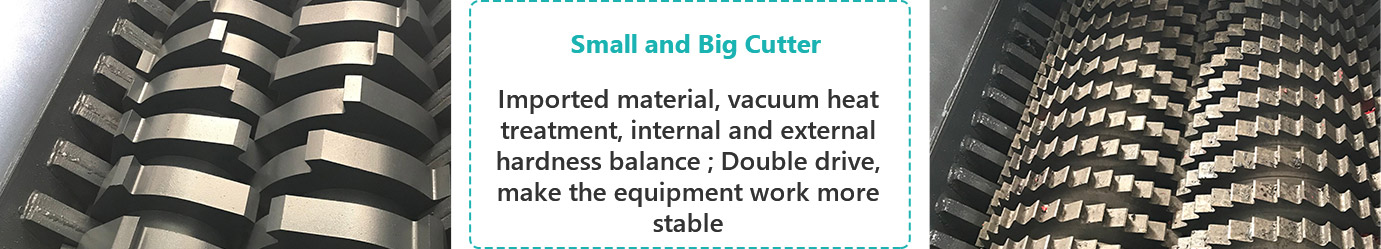

Overview Of Tyre Shredder

Application Area from Shredder Machine

  • Item Application Area from Shredder Machine
    Waste tire, rubber; plastic(plastic bottles etc)
    Metals(lead, aluminum, copper, cable, barrels, sheet scrap)
    Paper waste (newspaper, office paper, books, magazine, cardboard tube, paper packaging material)
    Electronic waste;aluminum cans
    Waste household appliances
    Textiles (rags, garments, carpet)
    Animal bones and organic waste
    wood(wooden pallets or fruit boxes)

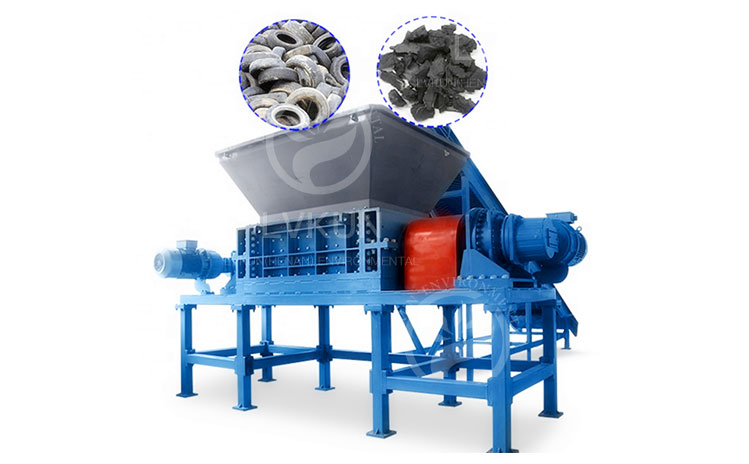

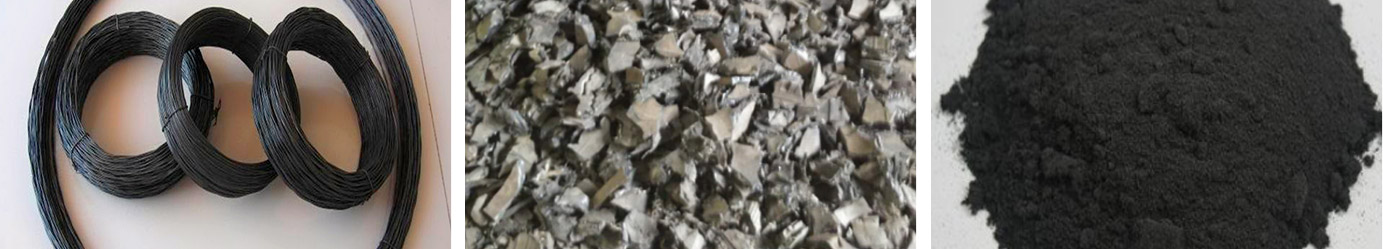

Tyre Shredder Output

Technical Date

  • Model Input Size Output Size Capacity Motor Dimensions Weight
    LKS-800 800mm 50*50mm 1-2T/H 2*22KW 4*2.6*3.2m 8T
    LKS-1200 1200mm 60*60mm 3-5T/H 2*36KW 4.8*2.8*3.5m 15T
    LKS-1600 1600mm 50-150mm 6-8T/H 2*40KW 5*2*3.5m 18T
    LKS-1800 1800mm 50-150mm 8-10T/H 2*52KW 5.5*2*3.5m 23T
    LKS-2000 2000mm 75-200mm 10-15T/H 2*70KW 6*2.5*4m 35T
    LKS-2400 2400mm 100-200mm 20-30T/H 2*100KW 7.5*3.2*5.2m 55T

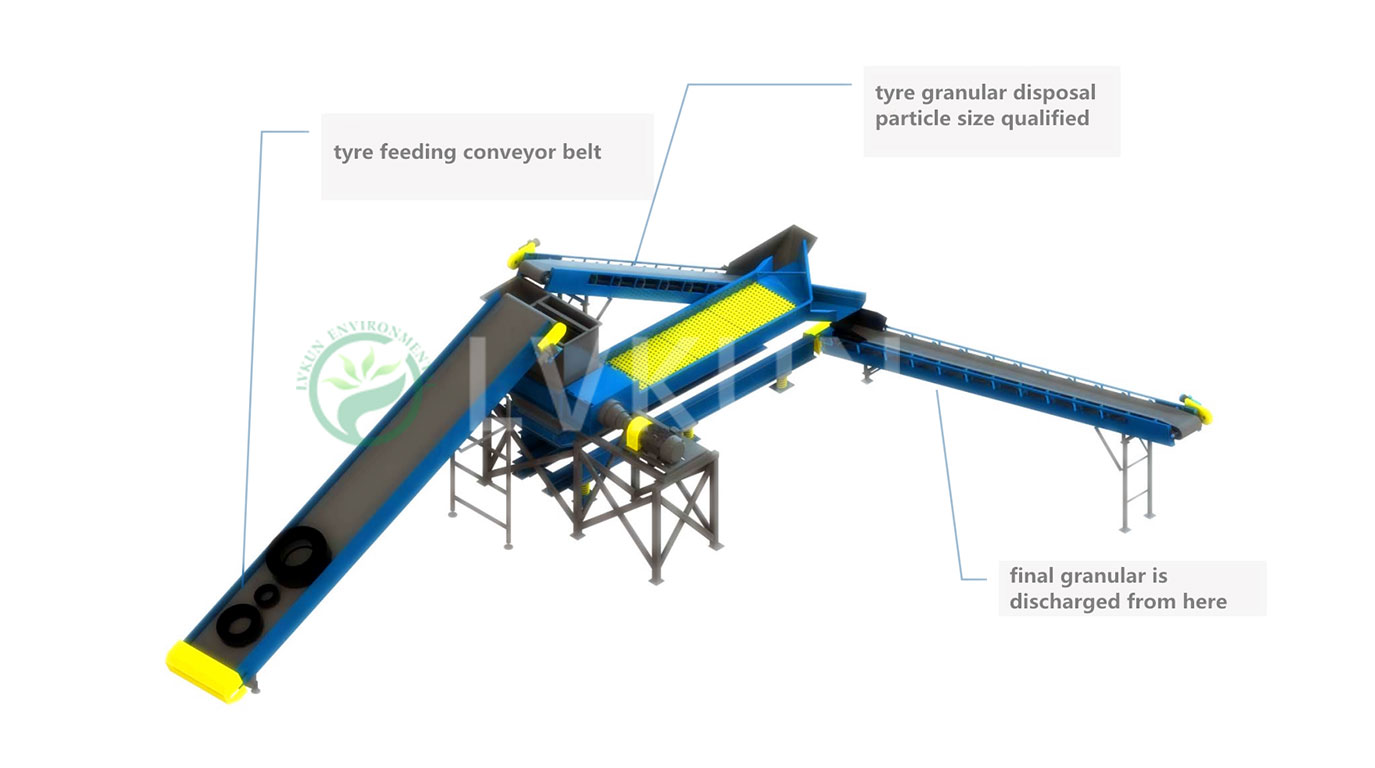

Lvkuna Shredder Machine 3D Drawing

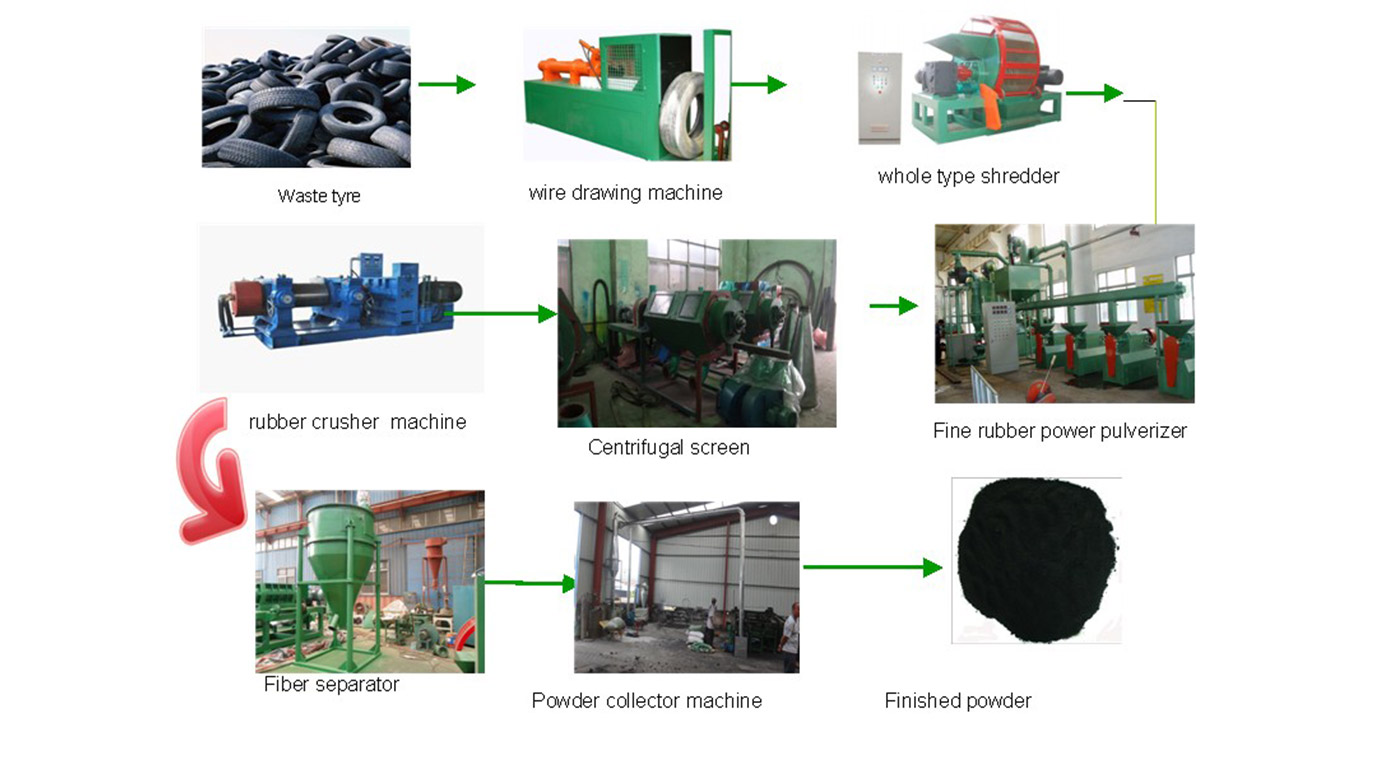

  • Lvkuna Shredder Machine Process Flow

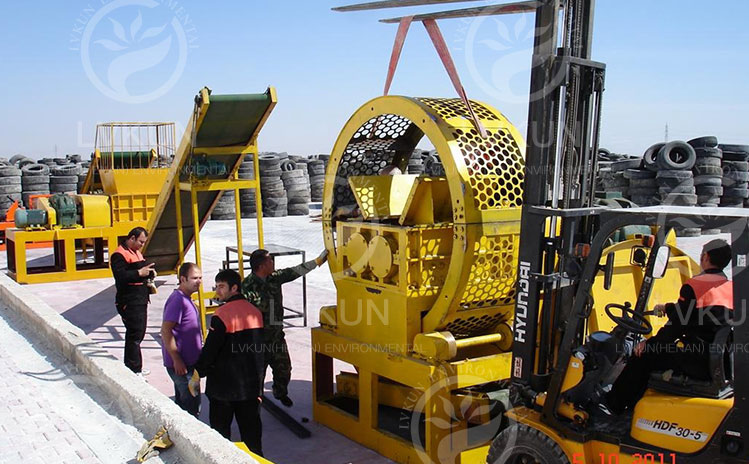

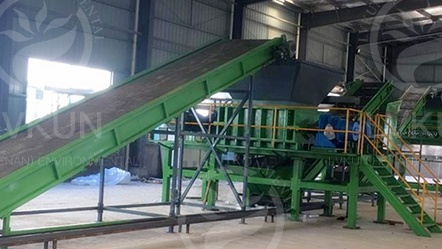

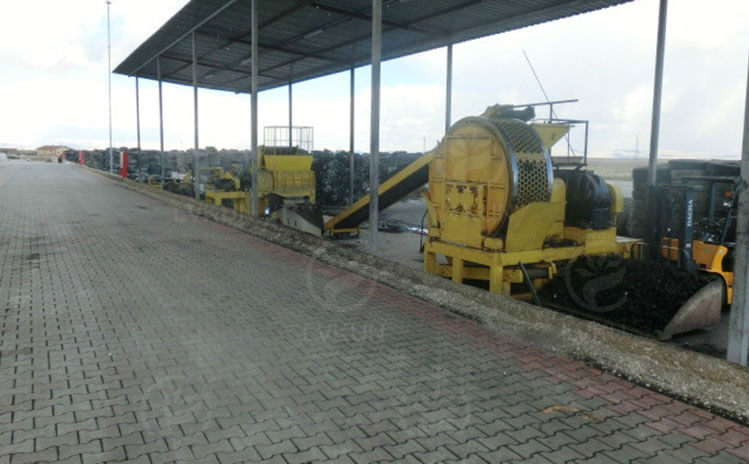

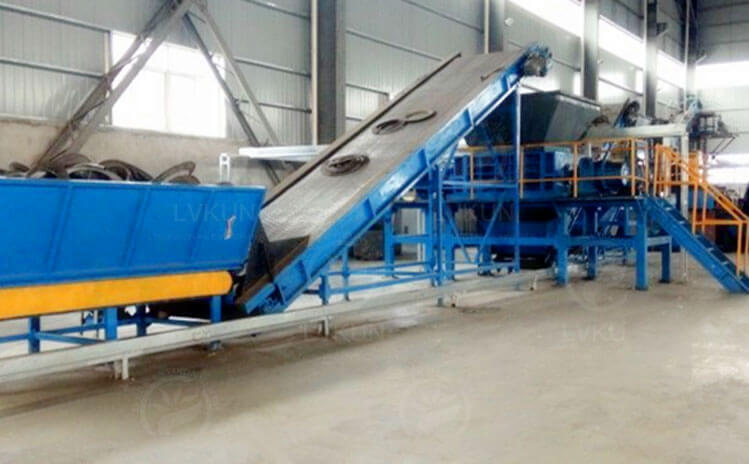

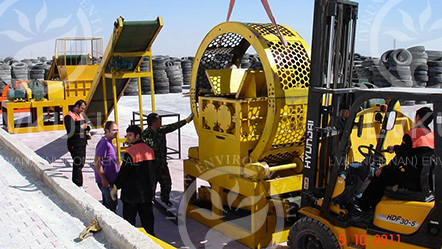

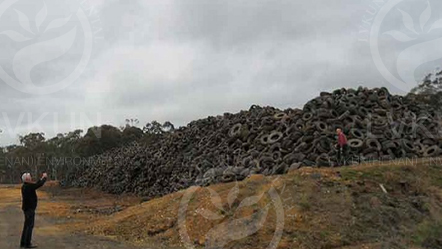

Case show
