Pyrolysis Oil Refining To Diesel Plant

Product Description

  • The waste engine oil (waste lubricating oil) replaced by various machinery, tyre pyrolysis oil,ships, motor vehicles or other equipment is purified by distillation to extract products such as base oil, diesel, gasoline and residual oil. The oil yield will be different according to different raw materials, please tell us your materials or you can send your samples, and we will test the oil yield for you in advance.


    Item Waste Oil Distillation Diesel Features
    Safety 1. Safety is the most important factor in whole process. We had successfully researched some safety devices which ensure oil distillation plant work safety
    2. We have oil water separator which can stop the oil gas recycle to the reactor, which could avoid the accident
    3. Safety valves, alarming device and the pressure gauge and so on
    Energy saving   1. A large amount of waste mineral oil/waste engine oil can be processed every year, which has good social benefits
    2. Recycling of exhaust gas can save energy and reducing costs
    3. Well sealing for heating system, no gas leak and saving fuel
    Environmental friendly   1. A large amount of waste mineral oil/waste engine oil can be processed every year, which has good social benefits
    2. Recycling of exhaust gas can save energy and reducing costs bars

Lvkun Small Scale Distillation Equipment Features


  • Lvkun Oil Distillation Diesel Oil and Application

TECHNICAL DATA

  • Model LKD-6 LKD-10 LKD-25 LKD-50
    Raw Material Used engine oil,pyrolysis oil, transformer oil,hydraulia oil,gear oil,mineral and so on
    Daily Capacity 6T/D 10T/D 25T/D 50T/D
    Working Method Intermittent/Batch Continuous
    Power 30kw 43kw 120kw 168kw
    Final Product Diesel oil ,gasoline oil ,base oil
    Oil Yield Rate 85-90%
    Cooling Method Water cycling cooling
    Heating Fuel Natural gas/Oil/Wood/Coal/LPG and so on

  • Lvkun Oil Distillation Equipment 3D Drawing


    Item Lvkun Oil Distillation Equipment Function
    Distillation reactor The raw oil will be pumped into the reactor of refining
    Distillation tower Atmospheric fractionator ensure different fraction come out
    Condenser device The oil gas will be cooled to liquid oil then flow to the oil storage tank
    Vacuum pump Ensure the distillation machine working under normal pressure
    Anti back fire device Safety device,prevent the oil gas revert to the reactor
    Non-condensable oil gas recycling system The non-condensed gas will be recycled to heating system as fuel
    Color and smell removal system The last step to remove bad smell and color to yellow diesel oil
    Dedust system 3layer of ceramic packing dedusting to remove dust and acidity,non-pollution
    Safety device Automatic releasing pressure device, alarm,safety valve etc for ensure safety operating

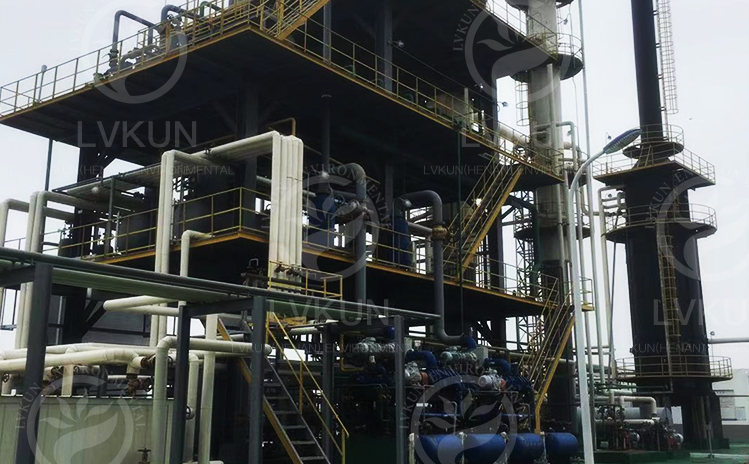

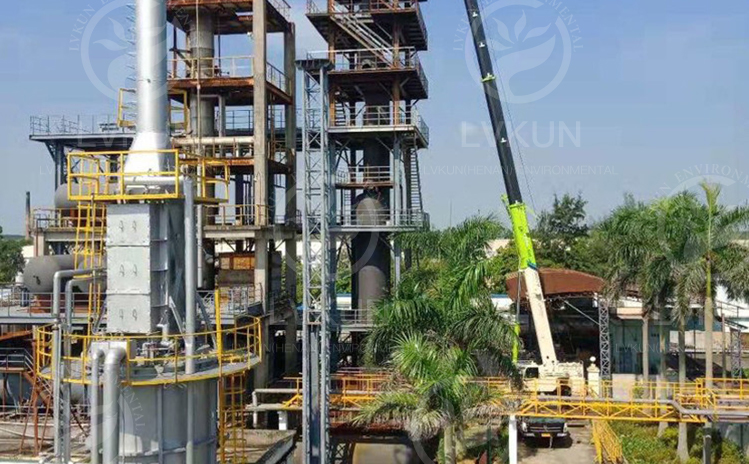

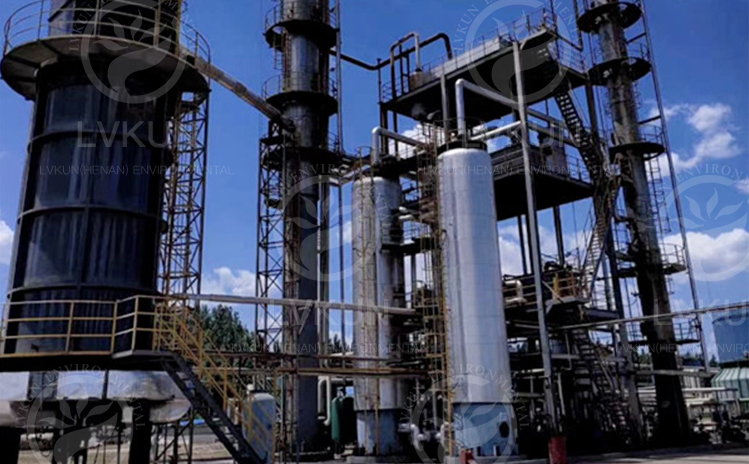

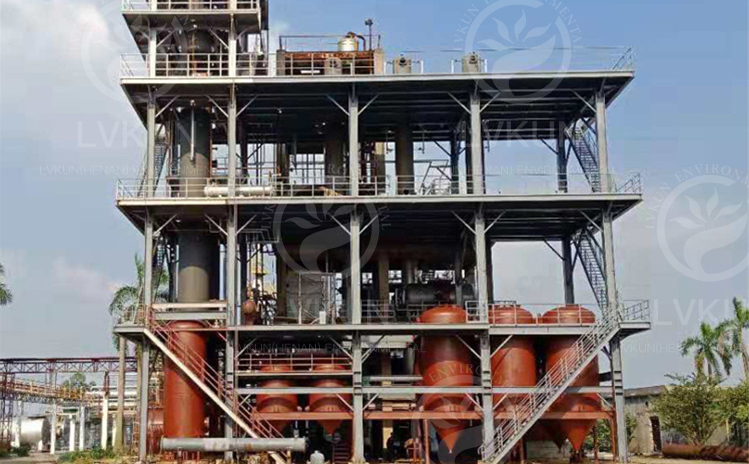

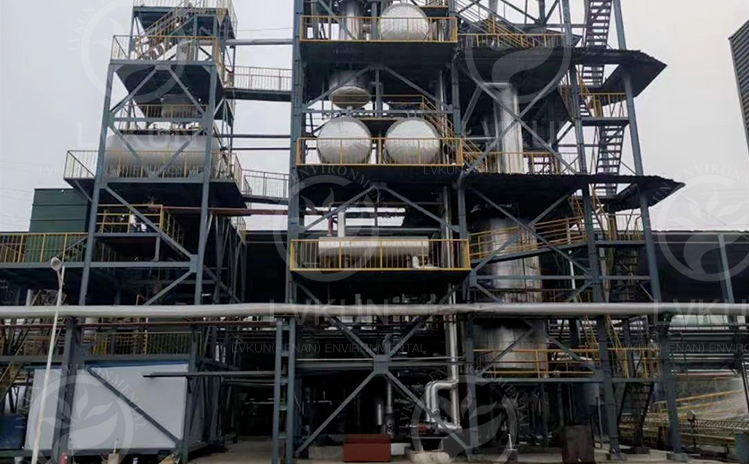

Case show
